AUTOMATIC CLEANING AND DRYING OF TOOLS AND CIRCULAR SAWS FOR THE GRINDING SHOP
IT ALLOWS TO CLEAN SAWS AND TOOLS UP TO A DIAMETER OF 910 MM (35.8")
HIGHLIGHTS
- Machine made of high quality stainless steel plate with 2 mm. thickness
- Adjustable water heating temperature up to 60ºC
- Programmable timer from 1 to 30 minutes of the washing cycle
- Biodegradable detergent with tool corrosion protection
- Optional motorization of the tool carriage
- Draining system for quick and easy change of the liquid
ELITE LAVAmaq 910. MACHINE BASIS.
The Elite LAVAmaq 910 provides a tool cleaning system that will save you a lot of operator time. Insert dirty tools such as circular saws, blades or milling cutters into the machine and within 10 to 15 minutes they will be completely clean, dry and protected against corrosion.
The cleaned tool is ready to be introduced into the grinder without contaminating the coolant.
It allows to clean saws and tools up to a diameter of 900 mm.
You can also insert the already sharpened tools for 1 minute so that they receive a corrosion protection that is completely dry and unnoticed.
ELITE LAVAmaq 910. HOW IT WORKS

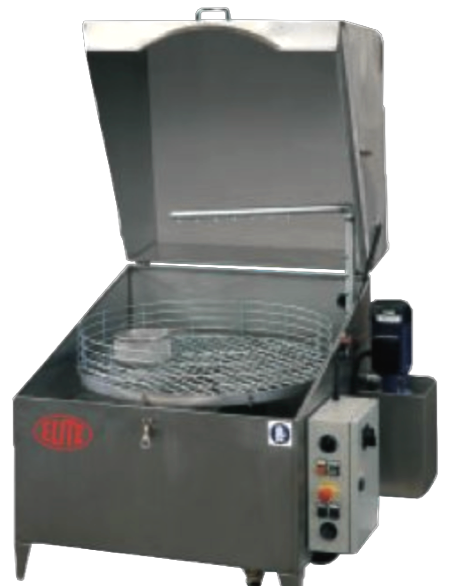

Machine overview

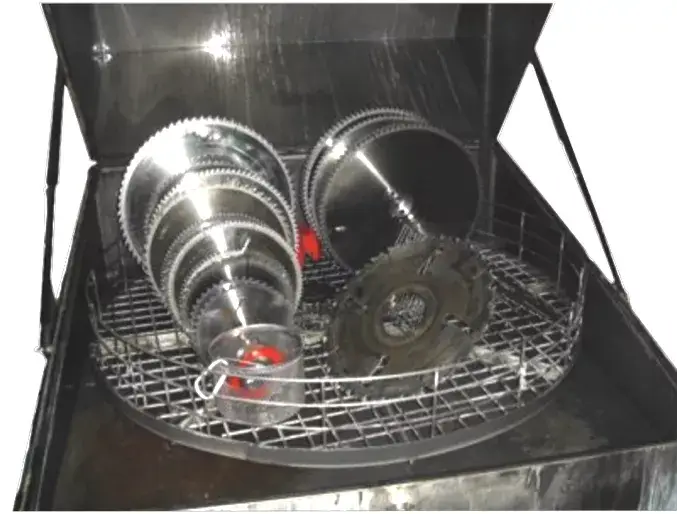

Loading of tools
Circular saw blades cleaned

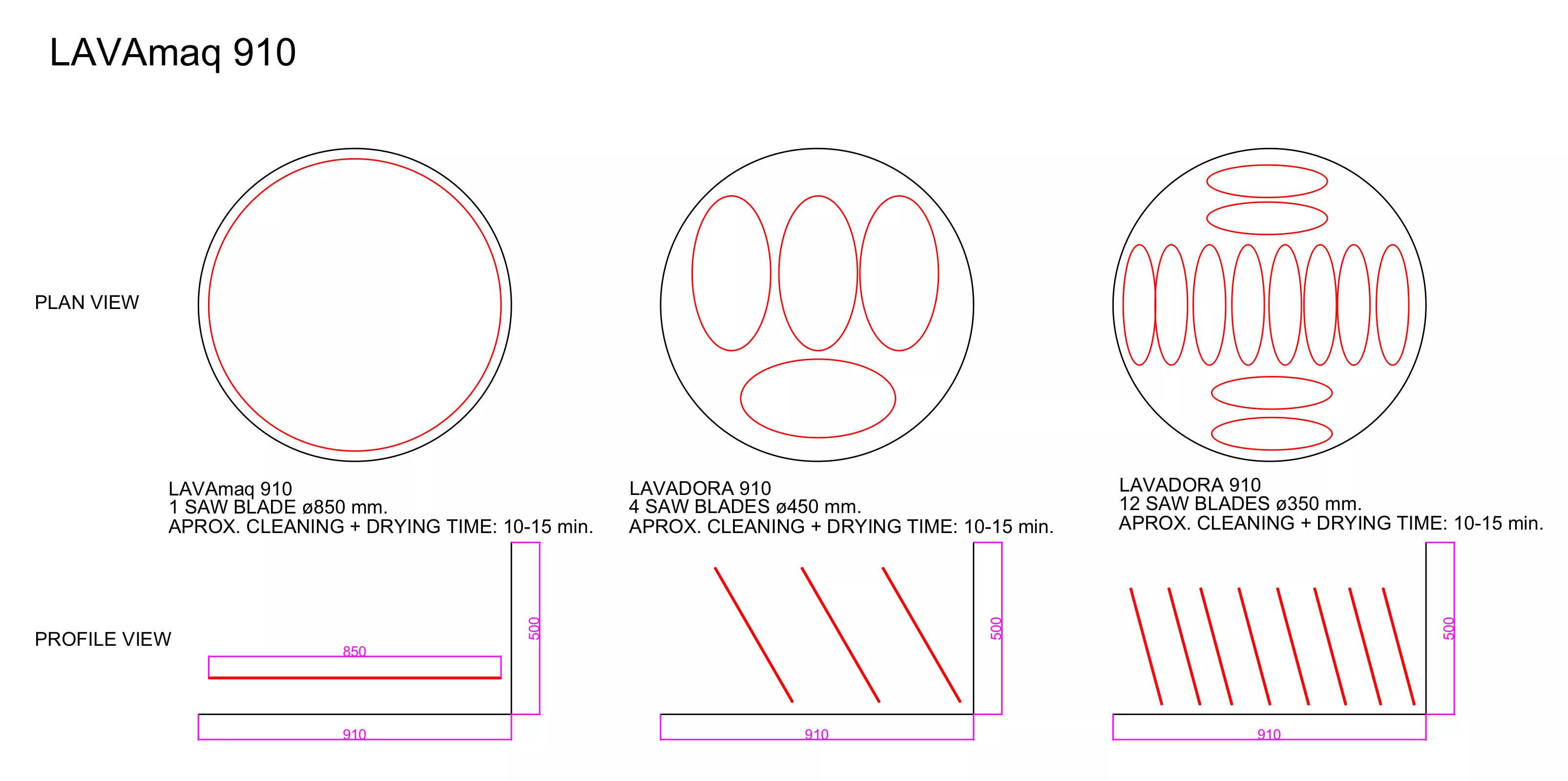

Placing the saws in the washing machine
LAVAmaq 910. OPTIONAL ACCESORIES
- Automatic rotation for LAVAmaq 910 tray. Necessary with high resistance dirt as resins.
- Inox steel tray for LAVAmaq 910
- Vapor exhaust
- Automatic filler for the tank
- Automatic drain of the tank
- Automatic oil separator

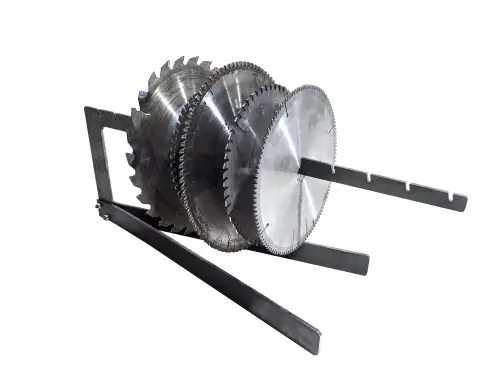

- Grid for the placement of discs
LAVAmaq 910. SPECIFICATIONS
| TECHNICAL DATA | LAVAmaq 910 |
|---|---|
| Maximum tool dimensions | ø900×500 mm. (Diameter x Height) |
| Maximum tool weight | 200 Kg |
| Cleaning temperature | Up to 60ºC |
| Pump | 170 l/min and 2,3 bar |
| Water tank capacity | 170 liters |
| Connection | 400V or 220V 3 Ph. 50/60 Hz. |
| AVAILABLE VERSIONS | ||
|---|---|---|
| Model | Net Size | Packing Weight |
| LAVAmaq 910 | 1290 x 1230 x 1900 mm. | 140 Kg. |
DOWNLOAD LEAFLET
MACHINES COMPARISONS AT A GLANCE
| MODEL | CLEANING SYSTEM | MAX. Ø CAPACITY | CLEANING AGENT |
|---|---|---|---|
| LAVAmaq 1150 | Hot water driven by pressure jet | Up to ø1100 mm. | Biodegradable with tool corrosion protection |
| LAVAmaq 910 | Hot water driven by pressure jet | Up to ø900 mm. | Biodegradable with tool corrosion protection |
| LAVAmaq 780 | Hot water driven by pressure jet | Up to ø750 | Biodegradable with tool corrosion protection |
| LAVAmaq 60 | Ultrasonic vibration with hot water | Up to ø450 mm. | Acid |
