AUTOMATIC STELLITE WELDING MACHINE FOR TEETH OF BAND AND GANG SAW BLADES
HIGHLIGHTS
- EASY TO USE: Control panel with on-screen guided instructions
- LOW MAINTENANCE: Hydraulic free for trouble free maintenance
- EXCELLENT QUALITY PRICE
- Programmable tooth pitch
ELITE MMV 350. THE CONCEPT.
ELITE MMV 350. HOW IT WORKS
Easy to use control panel
Easy access
Clean design and easy access for service or repair of the machine.
Easy maintenance

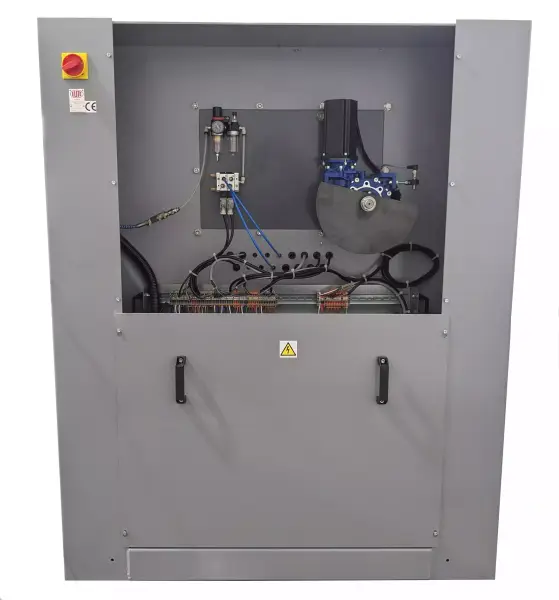

The electrical panel is located at the bottom and the mechanics at the top of the machine, protected by an easy-to-open cover.

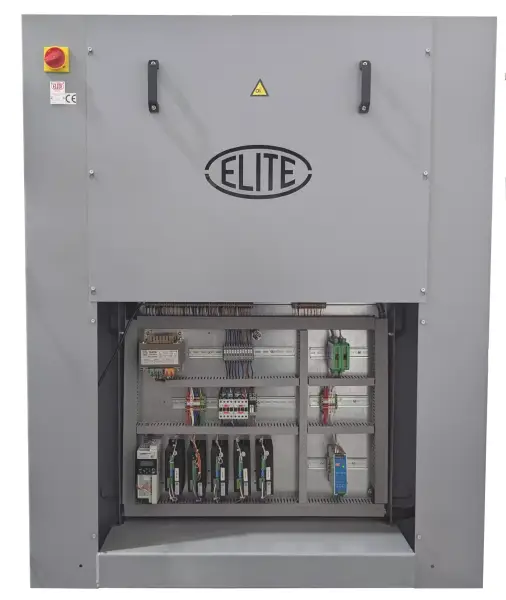

The electrical cabinet is organized in a clean manner, so the maintenance is easy when you need to do it.
ELITE MMV 350. SPECIFICATIONS
| TECHNICAL DATA | MMV 350 |
|---|---|
| Tooth shape | Straight, curved, carbide, free programming |
| Width | 40 - 350 mm. (1,5" - 13,5") |
| Tooth pitch | 3 - 120 mm. (0,2" - 4,7") |
| Grinding wheel engine | 2,2 kW (3 CV) |
| Power | 4 kW |
| Dimensions without stands | 105 x 75 x 180 cm. |
| Dimensions with stands | 240 x 75 x 180 |
| Weight | 740 kg. |
TECHNICAL REQUIREMENTS
Connection voltage: 220 1Ph 50/60Hz Required connection power: 2.5 kW
DOWNLOAD LEAFLET
REQUEST INFORMATION
MACHINES COMPARISONS AT A GLANCE
| MODEL | TOP GRINDING | TOOTH WELDING | SIDES GRINDING | SETTER | OTHER |
|---|---|---|---|---|---|
| SC PRO | 10 to 10 mm. bandsaws | - | - | - | - |
| EVG 350 | 40 to 350 mm. bandsaws | - | - | - | - |
| EVG 250 | 20 to 250 mm. bandsaws | - | - | - | - |
| SSC 350 | - | - | 40 to 350 mm. bandsaws | - | - |
| MMV 350 | - | 40 to 350 mm. bandsaws | - | - | - |
| SC 2 | 10 to 70 mm. triangular shape bandsaws | - | - | Optional: TR2 / TR3 mounted on SC 2 | - |
| SC 3 | 10 to 60 mm. triangular or curved shape bandsaws | - | - | No | Different cams for other tooth shapes are possible |
| LM PRO | - | - | - | - | Leveling + tensioning |
| TR 3 | - | - | - | 10 to 80 mm. | - |
| TR 2 | - | - | - | 10 to 45 mm. | - |
