AUTOMATIC SHARPENING MACHINE FOR BAND SAW BLADES AND GANG BANDSAWS CONTROLLED WITH 2 CNC AXES
HIGHLIGHTS
- EASY TO USE: Control panel with on-screen guided instructions
- LOW MAINTENANCE: Hydraulic free for trouble free maintenance
- EXCELLENT PRICE QUALITY
- Complete automation with a rational price: 2 CNC axes for complete machining of all common tooth geometries in one cycle.
- Programmable tooth pitch
- Very compact machine for a wide range of band saws from 40 to 350 mm.

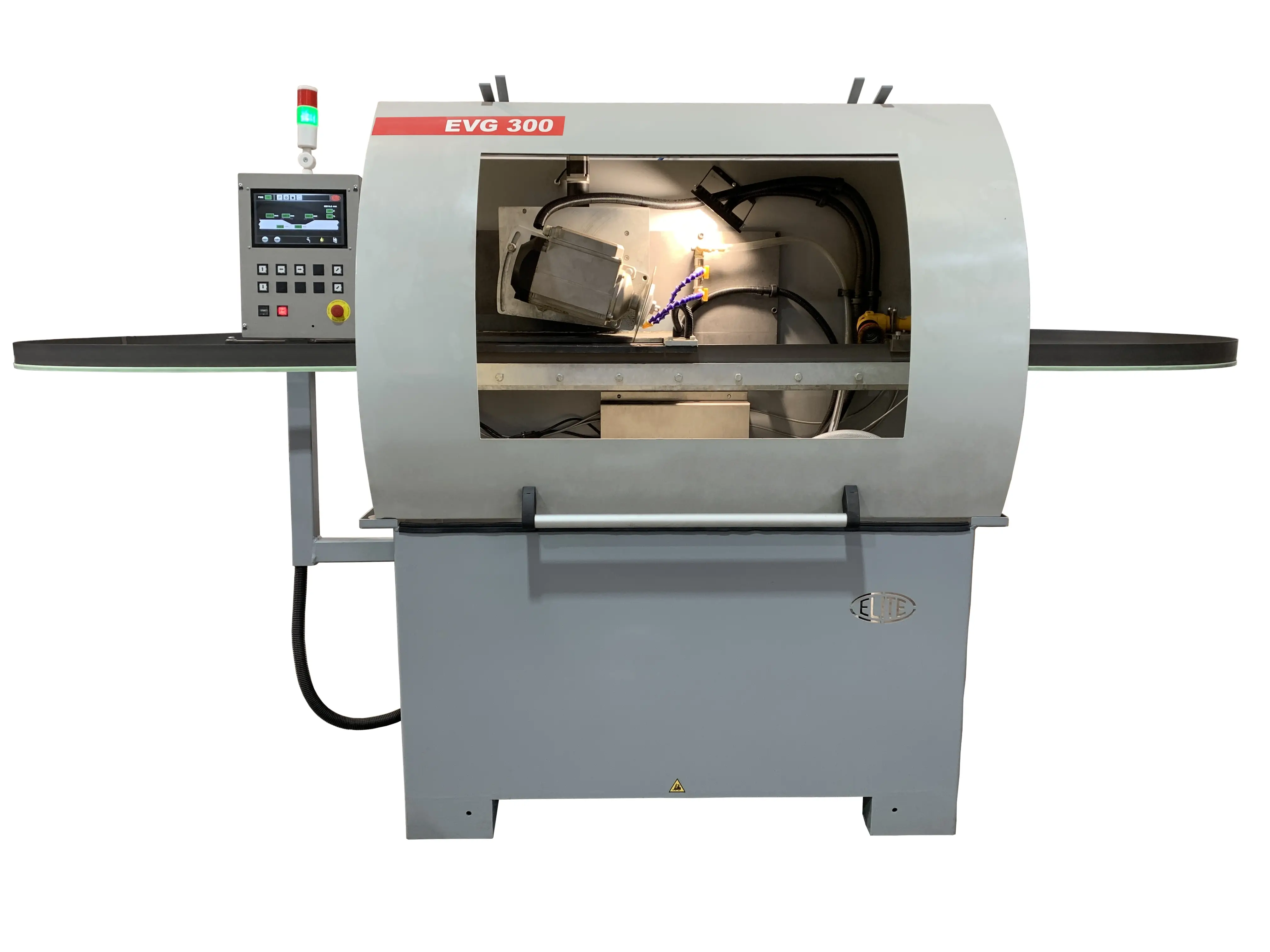

ELITE EVG 350. THE CONCEPT.
The ELITE EVG 350 is our fully automatic 2-axis CNC sawmill band saw sharpener that allows complete machining of all common tooth geometries in one cycle. Short path paths ensure fast grinding operation.
A: Tooth advancement
Z: Movement of the grinding wheel
Its cabin is completely closed for silent operation. It consists of a very fast door opening system that guarantees quick placement of the band saw.
ELITE EVG 350. HOW IT WORKS
Easy to use control panel
The control panel with a 10” color touch screen that allows the creation or editing of a program while the machine is working on another program. Among the programmable values are:
- Tooth angle programming. The wheel axis is automatically positioned to the value entered in the program
- Tooth geometry
- Sharpening path
- Sharpening charge
- Sharpening speed
- Tooth pitch
- Tooth advance claw feed rate
- Number of teeth
Easy access
Clean design and easy access for service or repair of the machine.
Easy maintenance
The electrical panel is located at the bottom and the mechanics at the top of the machine, protected by an easy-to-open cover.
The electrical cabinet is organized in a clean manner, so the maintenance is easy when you need to do it.
ELITE EVG 350. EQUIPMENT INCLUDED
- Band saw holder.
- Band saw clamping jaws.
- Lighting of the work area using LED lamp
- Small mist extractor.
- Preparation to connect to machine filtration system or centralized filtration system.
ELITE EVG 350. SPECIFICATIONS
| Technical data | EVG 350 |
|---|---|
| BANDSAW DATA | |
| Bandsaw Width | 40 - 350mm. (1.5" - 13.5") |
| Saw body thickness | Up to 8mm. (0.31") |
| Tooth pitch | Up to 125mm. (4.92") |
| FACE GRINDING | |
| Cutting angle | from 0º to + 30º |
| OTHER INFORMATION | |
| Grinding wheel motor | 3 kW |
| Grinding wheel speed | 2800RPM |
| Diameter of the grinding wheel | ø250 mm. |
| Machine dimensions | 1650x1200x1900 |
| Weight | 640 kilos. |
| REFRIGERATION EQUIPMENT | |
| Tank capacity | 220 liters. |
| Coolant flow rate | Up to 40 liters/minute. |
TECHNICAL REQUIREMENTS
6 bar air connection required.
Connection voltage: 230V 3Ph - 400V 3Ph+N, 50/60Hz
Required connection power: 4 kW
RECOMMENDED OPTIONAL ACCESSORIES
For better sharpening quality, it is recommended to equip with the filtration system ELITE FILTRAmaq UNO. Filtration up to 2 µm.
DOWNLOAD LEAFLET
MACHINES COMPARISONS AT A GLANCE
| MODEL | TOP GRINDING | TOOTH WELDING | SIDES GRINDING | SETTER | OTHER |
|---|---|---|---|---|---|
| SC 10 | 20 to 300 mm. bandsaws | - | - | - | - |
| SC PRO | 10 to 10 mm. bandsaws | - | - | - | - |
| EVG 350 | 40 to 350 mm. bandsaws | - | - | - | - |
| EVG 250 | 20 to 250 mm. bandsaws | - | - | - | - |
| SSC 350 | - | - | 40 to 350 mm. bandsaws | - | - |
| MMV 350 | - | 40 to 350 mm. bandsaws | - | - | - |
| SC 2 | 10 to 70 mm. triangular shape bandsaws | - | - | Optional: TR2 / TR3 mounted on SC 2 | - |
| SC 3 | 10 to 60 mm. triangular or curved shape bandsaws | - | - | No | Different cams for other tooth shapes are possible |
| LM PRO | - | - | - | - | Leveling + tensioning |
| CH PRO | - | - | - | - | Swaging |
| TR 5 | - | - | - | 20 to 120 mm. | - |
| TR 3 | - | - | - | 10 to 80 mm. | - |
| TR 2 | - | - | - | 10 to 45 mm. | - |
