Hollow face sharpening machine for tungsten carbide teeth of circular saws from 210 to 650 mm diameter

HOLLOW FACE SHARPENING MACHINE FOR THE TUNGSTEN CARBIDE TEETH OF CIRCULAR SAWS

HIGHLIGHTS

  • 2 CNC axes for automatic work programmable from the control panel
  • Programmable tooth pitch
  • Easy to use
  • Very compact machine with a wide range of disc diameters: from 210 to 650 mm.

ELITE MVB 650. THE CONCEPT.

The ELITE MVB 650 model is our machine for the sharpening of the hollow face teeth on carbide circular saws. It comes in a half enclosure configuration that makes it especially economical for workshops that require a good return of investment.

For saws from ø210 to 650 mm.

Automatic operation using 2 CNC axis:

  • A: Tooth indexing
  • X: Sharpening travel

Manual axis:

  • Y: Saw blade body thickness
  • Z: Stock removal
  • B: Face angle

The design of the cabin ensures particularly easy access for quick adjustment of the machine's preparation for sharpening.

Hollow face sharpening machine of the tungsten carbide teeth of circular saws ELITE model MVB 650


ELITE MVB 650. HOW IT WORKS

Easy to use control panel

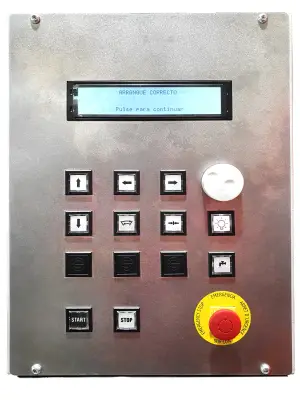

Simple and easy to use control panel of the hollow face grinding machine ELITE model MVB 650

The control panel with LCD screen allows the programming of the machine. Among the programmable values we highlight:

  • Sharpening path
  • Sharpening speed
  • Tooth pitch
  • Indexing speed of the tooth feeding pawl
  • Number of teeth
  • Broken teeth

All the functions of the buttons are explained in the buttons with illustrations and every button is intended to do a single task. So you know what to expect from a button press.

Sharpening group

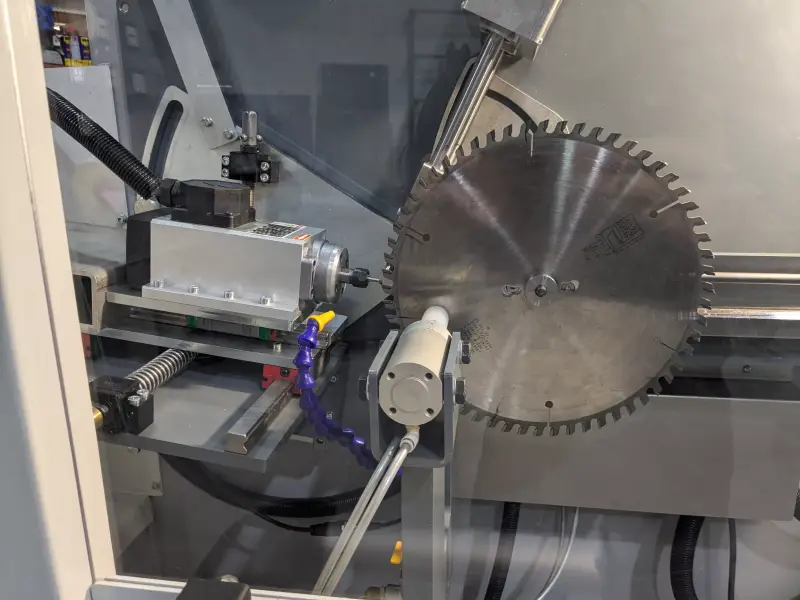

Sharpening group of the hollow face grinding machine ELITE model MVB 650

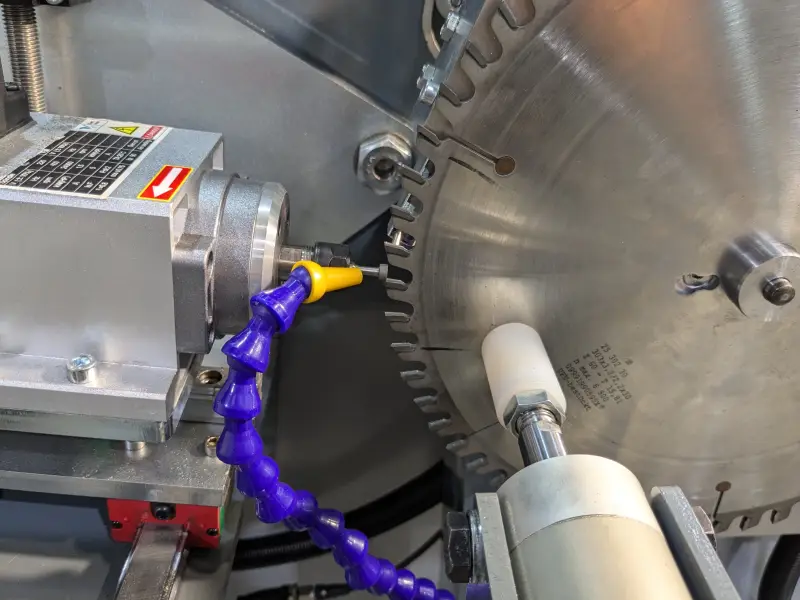

Sharpening body of the hollow face grinding machine ELITE model MVB 650

Integrated refrigeration equipment

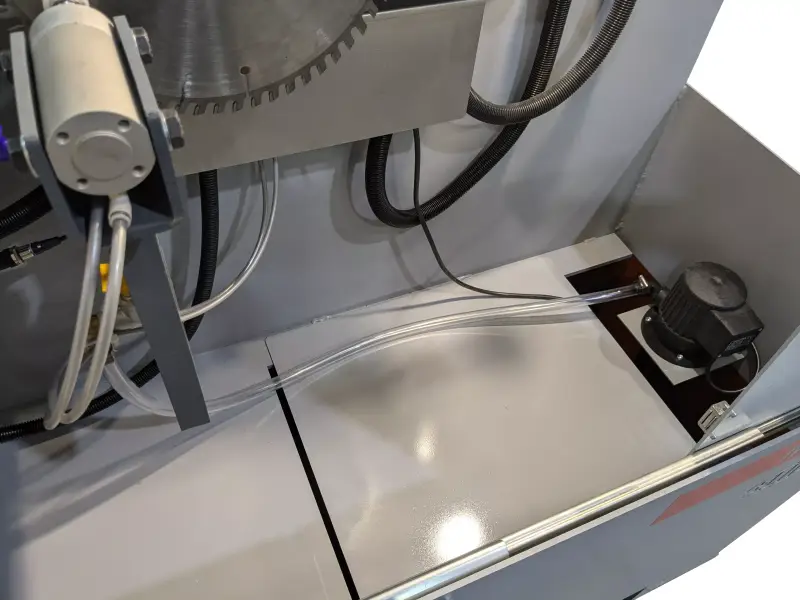

It allows wet sharpening with water-soluble coolant or grinding oil for better sharpening quality and longer grinding wheel life. for better surface quality and longer grinding wheel life.
Integrated coolant system with 220-liter tank and removable grates for easy cleaning.
Cooling unit for the hollow face grinding machine ELITE model MVB 650

Easy access

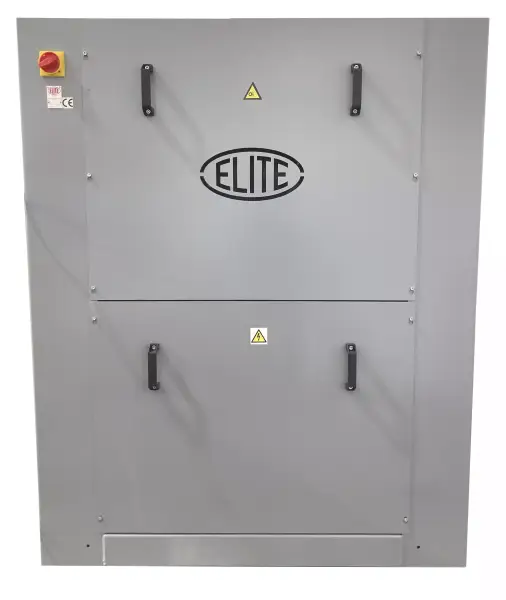

Easy access for servicing the hollow face grinding machine ELITE model MVB 650
Clean design and easy access for servicing or repairing the machine.

Easy maintenance

The electrical panel is located at the bottom and the mechanics at the top of the machine, protected by an easy-to-open cover.

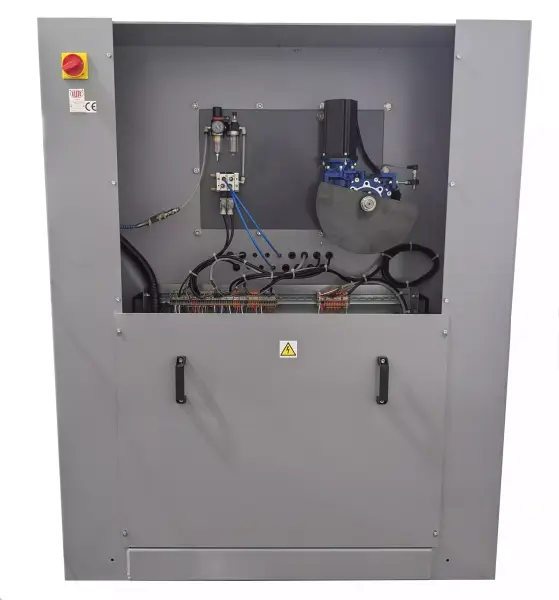

Easy access to the mechanical part of the machine

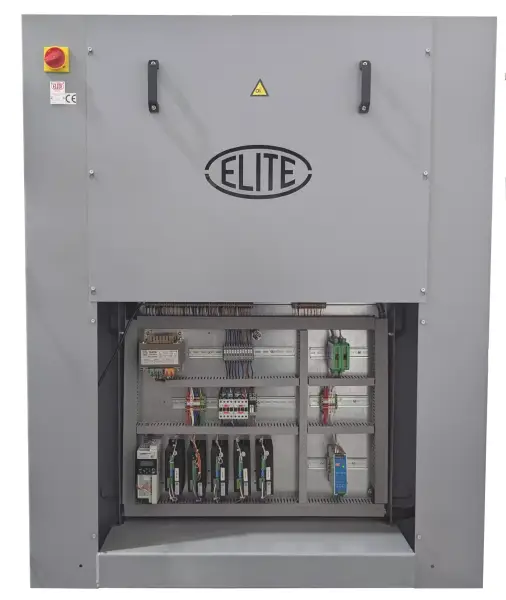

Perfectly organised and accessible electrical panel
The electrical panel is organized in a clean way, so maintenance is simple when necessary.


ELITE MVB 650. EQUIPMENT INCLUDED

  • Grinding pin collet holder
  • Feeding pawl of 3 mm.
  • Device for serial sharpening of equal diameters.
  • Half enclosure.

ELITE MVB 650. SPECIFICATIONS

TECHNICAL DATA MVB 650
Saw blade outside diameter From ø210 to ø650 mm. (6" to 25,5")
Saw blade bore diameter From ø10 mm.
Blade thickness Up to 8 mm. (0,31")
Tooth pitch Up to 125 mm. (4,9")
HOLLOW FACE GRINDING
Grinding path Up to 25mm.
Grinding angle From 0º to +30º
OTHER DATA
Grinding wheel motor 1,5 kW
Grinding wheel speed 24000 RPM
Grinding wheel pin shaft diameter ø6 mm.
2 CNC axis A: feeding pawl - X: sharpening path
Machine dimensions 1440 x 1285 x 1600 mm.
Machine weight 520 kg.

TECHNICAL REQUIREMENTS

6 bar air connection required.
Connection voltage: 220V 2Ph 50/60Hz
Required connection power: 1.5 kW


Saw holders for incisors and for discs, and centering rings in various sizes

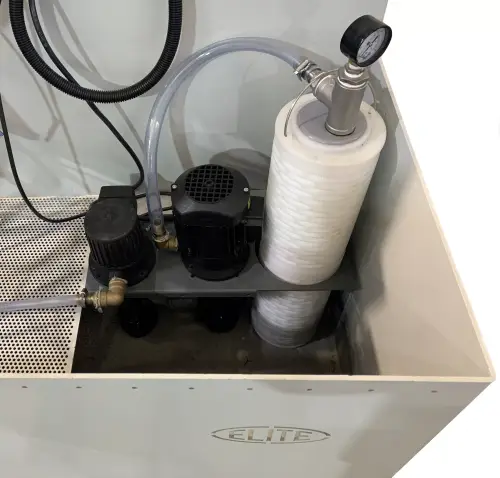

For better sharpening quality, it is recommended to equip the machine with the filtration system ELITE FILTRAmaq UNO. Filtration down to 2 µm.
Economical filtration system for grinding machine with low maintenance cost ELITE model FILTRAmaq UNO

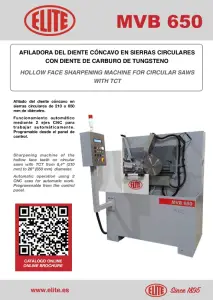

DOWNLOAD LEAFLET
