Automatic knive-blades sharpening machine with capacity up to 1230 mm. length Affordable. Easy to use and low maintenance cost.

COMPACT KNIFE SHARPENING MACHINE WITH HIGH GRINDING CAPACITY

CAPACITY UP TO 1230 MM. LENGTH

AUTOMATIC MACHINE WITH COLOR TOUCH SCREEN AND PRODUCTION PROGRAM FOR EQUAL SERIES

CU%20mini%201200%20-%20General%202

HIGHLIGHTS

  • Carriage movement free of vibration.
  • Guiding system that absorbs vibration produced during grinding.
  • High power of the grinding wheel motor: 3 HP for 50Hz versions, 4 HP for 60Hz versions.
  • Control panel with automatic vertical movement of the grinding wheel.
  • Adjustable carriage travel.
  • Programmable work cycle via programmable color touch screen.

ELITE CU mini 1200. MACHINE BASIS.

The ELITE model CU mini 1200 is our smallest series of grinding machines for knives blades sharpening, which allow to sharpen knives up to 1230 mm long, with high removal rates.

Fully automatic, simple, compact and economical machine that requires a low maintenance.

With its powerful grinding motor and its vibration free system, it allows a good surface finish with good grinding times for its size.

We have analyzed the work cycle of a sharpening workshop to optimize the use of the machine. The result is a control panel with color touch screen and most of the program of our largest blade sharpener: the ELITE model CU PRO. Inside there is a powerful control with 1 CNC axis, so that the sharpening cycle is automatic and quality.

Once the grinding cycle is completed, you can select to activate the fine finishing cycle to obtain the highest quality and minimum surface roughness of the tool grinded.


ELITE CU mini 1200. HOW IT WORKS

The ELITE CU mini knife sharpener is suitable for a wide range of knives such as planer knives, wood chippers, knives for recycling, etc.
Clean and sleek design for and easy to use so as easy maintenance.

Easy to use control panel

CU%20mini%201200%20panel%20de%20control

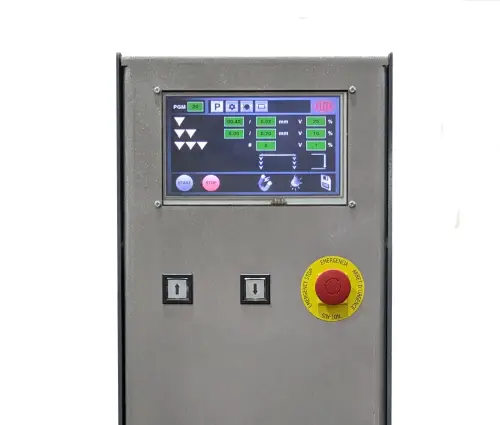

The control panel incorporates a color touch screen. This screen has been designed with a fast and easy-to-use interface that makes it very easy to program the machine. Allows you to create and save programs, perfect for the blade sharpening workshop.

Allows you to program the full sharpening cycle like our larger machine models:

  • Roughing process:
    • Total amount to be grinded
    • Partial amount to grind every carriage pass
    • Carriage speed
  • Finishing process:
    • Total amount to be finished
    • Partial amount to grind every carriage pass
    • Carriage speed
  • Polished:
    • Number of carriage travels
    • Carriage speed
  • Grinding wheel down feed: left, right or both carriage travel sides.
  • Production program for equal size knives

Carriage movement

Grinding carriage moved by a powerful motor with worm reducer
Motor%20carro

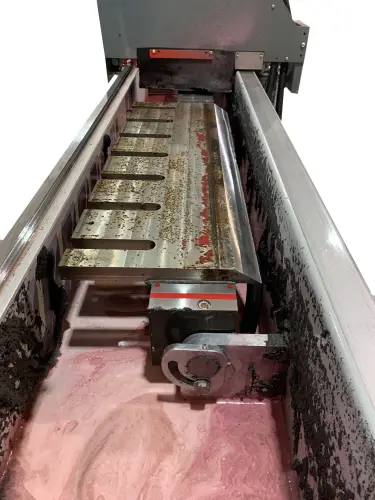

Magnetic chuck for holding the knives blades

Magnetic chuck for blades that can be magnetized and demagnetized from the control panel.
The magnetic chuck is of the electro-permanent type, so it only consumes energy when magnetizing or demagnetizing.
It incorporates threaded holes to be able to fix other types of supports or parts that are not magnetizable.

Perfect match

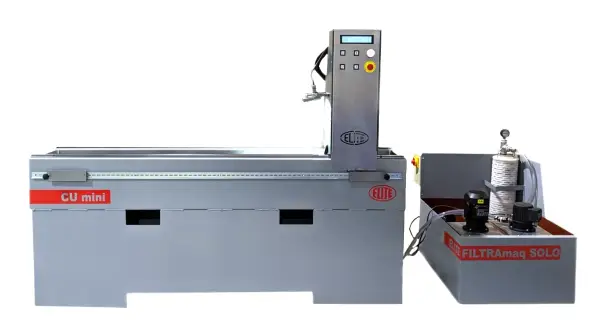

CU mini 1200 + FILTRAmaq SOLO
CU%20mini%201200%20and%20FILTRAmaq%20SOLO

By equipping the CU mini with a FILTRAmaq SOLO filter system, you achieve reduced machine maintenance due to less wear and tear on moving parts such as bearings and guides. And also by sharpening your blades with a coolant completely free of contamination and abrasive particles, the final finish of the workpiece and its roughness will be much better.


EQUIPMENT INCLUDED

  • Magnetic clamping plate of 1230x100 mm.
  • Maximum step between plate and grinding wheel: 95 mm.
  • Adjustable plate from 0º to 90º.
  • Automatic grinding wheel lowering
  • Partial lowering adjustable from 0.01 mm to 0.5 mm. Adjustable without steps.
  • Total lowering adjustable from 0 to 5 mm. Adjustable without steps.
  • Production program for sharpening blades of the same size.
  • 3 HP grinding wheel motor. (4 HP in 60 Hz version). Optional: 4 HP motor
  • Easy-to-use control panel with LCD touch screen
  • Refrigeration equipment with a capacity of 70 liters
  • Prepared for connection to an ELITE centralized filtration system model FILTRAmaq SOLO/PRO.
  • Motorized carriage movement
  • Carriage speed variator
  • Working length adjustment
  • Displacement of the lowering of the grinding wheel using guides with anti-vibration bearings.
  • Manual inclinometer

ELITE CU mini 1200. SPECIFICATIONS

TECHNICAL DATACU mini 1200
Useful work capacityUp to 1230 mm.
Grinding wheel motor power3 HP for 50 Hz version - 4 HP for 60 Hz version. Direct drive
Grinding wheel diameter150mm.
Grinding wheel automatic and programable downfeedBy means of guides with anti-friction vibration-dampening slide bearings and trapezoidal spindle.
Carriage speedFrom 1 to 15 m/min.
Displacement of the motorized carriageMovement on linear guides and translation by wheel.
Max. distance between grinding wheel and chuck95mm.
Magnetic chuck as standardYes
Magnetic clamping chuck1230 x 100 mm.
Chuck rotation0º to +90º
Control panelWith LCD screen with program storage.
Coolant tank90 liters
Max. connected power4kW
AVAILABLE VERSIONS
ModelSizeWeight
CU mini 12002200 x 650 x 1500mm.500 kilos

TECHNICAL REQUIREMENTS

Connection voltage: 220/400V 3Ph 50/60Hz

Required connection power: 4 kW


OPTIONAL ACCESSORIES

  • Magnetic chuck with fixed polarity for tungsten carbide inserts.
  • Bellows cover
  • Mist extraction system
  • Segment holder
  • Independent coolant tank (50 l/min)
  • Filtering system FILTRAmaq SOLO

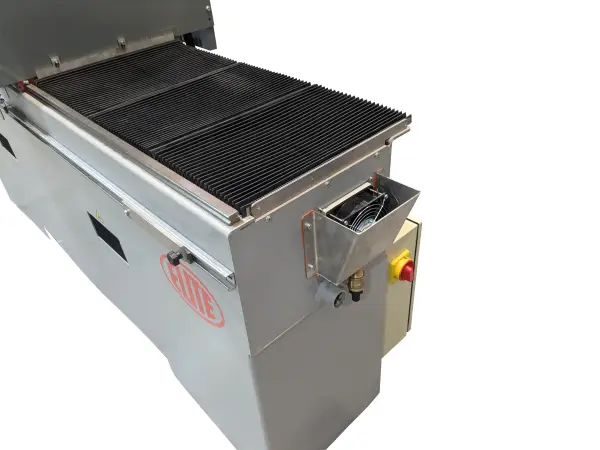

CU mini with bellows cover and mist extraction system

CU%20mini%201200%20Aspiracion

Segment holder

Assembly of different grinding wheels

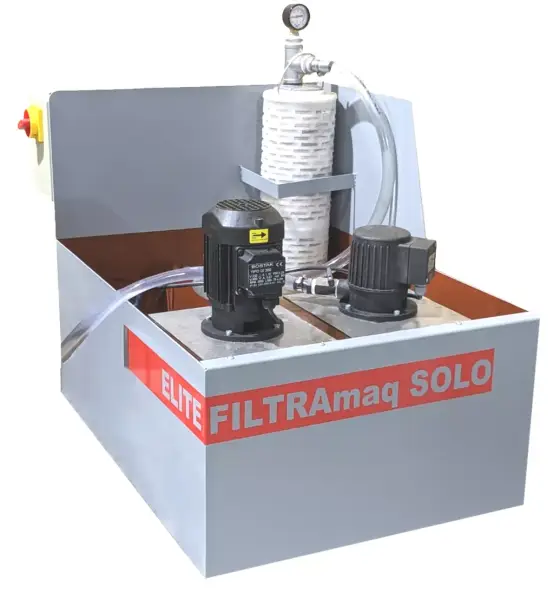

FILTRAmaq SOLO
FILTRAmaq%20SOLO

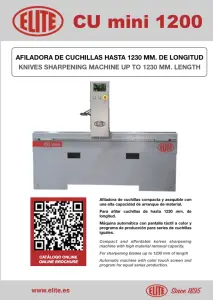

DOWNLOAD LEAFLET
