B 20

Sharpening drills for wood or metal from ø1 mm to ø20 mm in diameter (0.03" to 2.4")

DRILL SHARPENING MACHINE FROM ø1 TO ø20 MM.

2, 3 OR 4 CUTS TO THE RIGHT AND LEFT

PRECISE SHARPENING OF DRILLS.

ELITE%20B20

HIGHLIGHTS

  • Front adjustment of the grinding load for precision grinding
  • Lateral adjustment for the centering of the edge of the bit with respect to the grinding wheel
  • Built-in magnifying glass to check the required sharpening load with respect to the wear of the bit, and the final result of the sharpening without the need to disassemble the drill-bit
  • For drills with left or right cut
  • Diameter of the drill bits: ø1 to ø 20 mm
  • Corundum grinding wheel of ø125 x 20 x 20 mm. Included

ELITE B 20. MACHINE BASIS.

The Elite model B-20 allows fast and precise sharpening of the drills.

The machine is fitted as standard with a practical magnifying glass to check the wear of the drill and the grinding result without having to remove the drill from the machine.

The sharpening load is regulated with the front knob to obtain an even and precise load.

If the drill needs to be centered with the grinding wheel, the side knob is used.

The base of the machine incorporates a template with the standard degrees of the drills already marked, so that it is very easy to obtain the correct degrees.


ELITE B 20. HOW IT WORKS

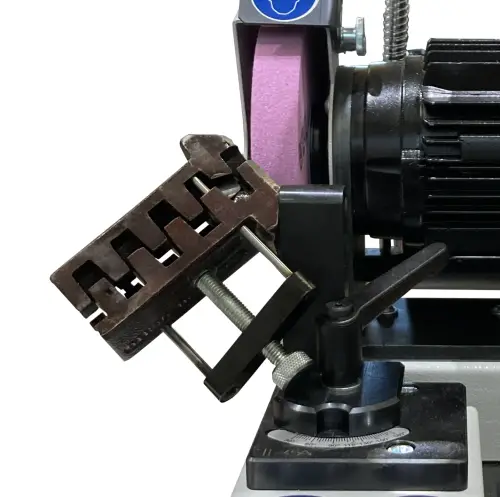

View of the drill bit
ELITE%20B20%20Drill%20bit

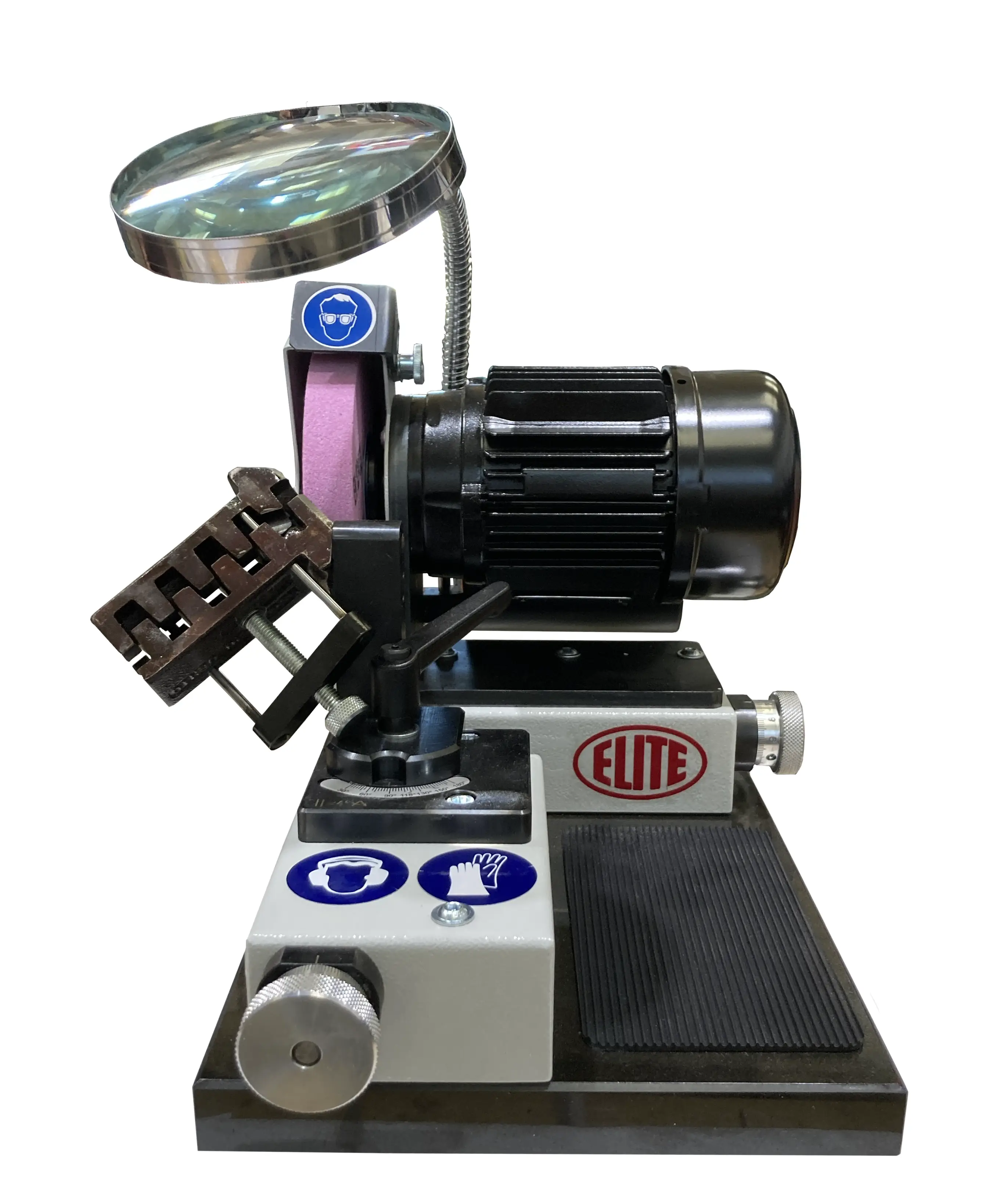

Magnifier glass for quality work
ELITE%20B20


ELITE B 20. OPTIONAL ACCESSORIES

  • 3 cuts drills adaptor
  • Morse taper 1 short drills holder
  • Morse taper 2 short drills holder
  • Special corundum grinding wheel
  • Diamond grinding wheel
  • CBN Grinding wheel

ELITE B 20. SPECIFICATIONS

TECHNICAL DATA ELITE B 20
Sharpening capacity From ø1 to ø20 mm (0.039" to 0.78")
Type of drills 2-3 and 4 cuts drills for wood or steel, right and left
Travel range. Motorslide 55 mm
Travel range. Prism feed 45 mm
Clamping range prism 2,0 - 20,0 mm
Connection voltage 110/220 V. single phase
Noise emission <70 dB (A)
Flow time of grinding wheel around 10 seconds
Machine dimensions 290 x 220 x 250 mm
Weight net 13,5 Kg
AVAILABLE VERSIONS
Model Packing Size Gross weight
B 20 370 x 310 x 260 mm. 32 Kg.

DOWNLOAD LEAFLET

Brochure ELITE B 20


REQUEST INFORMATION

Contactar


MACHINES COMPARISONS AT A GLANCE

MODEL ø OF DRILL-BIT COUNTERSINKS Magnifyng glass Wet grinding
B 70 ø3 to ø70 mm. Yes Yes Optional
B 20 ø1 to ø20 mm. No Yes Optional
