MVB 850

Automatic grinding of the back of the tooth and sharpening of the top and face of carbide tipped circular saw blades from 100 to 850 mm diameter

TUNGSTEN CARBIDE TOOTH CIRCULAR SAWS BACK-OFF GRINDER AND SHARPENING MACHINE

MVB850%28F%29

HIGHLIGHTS

  • 4 CNC axes for automatic work programmable from the control panel
  • Programmable tooth pitch
  • Back-off grinding of the saw body, sharpening the inside and sharpening the flat outside
  • Easy to use
  • Very compact machine with a wide range of disc diameters: from 100 to 850 mm.

ELITE MVB 850. THE CONCEPT.

The ELITE model MVB 850 is our back-off grinder to remove the steel in the back of the tooth in tungsten carbide tooth on circular saws. It can also sharpen the face and the flat top of the teeth as an option.

For saws from ø100 to 850 mm.

Its special configuration makes it the ideal machine for the sharpening workshop. It not only allows the relief of the saw body, but also allows the sharpening of the inside and outside of the tooth in the straight geometry. This double function allows for greater use, which implies a much faster amortization of the cost of the machine.

Automatic operation using 4 CNC axes:
B: Tooth angle
C: Feed claw
Z: Sharpening path
X: Sharpening load

The optimal design of the cabin guarantees quick positioning of the saw blade.

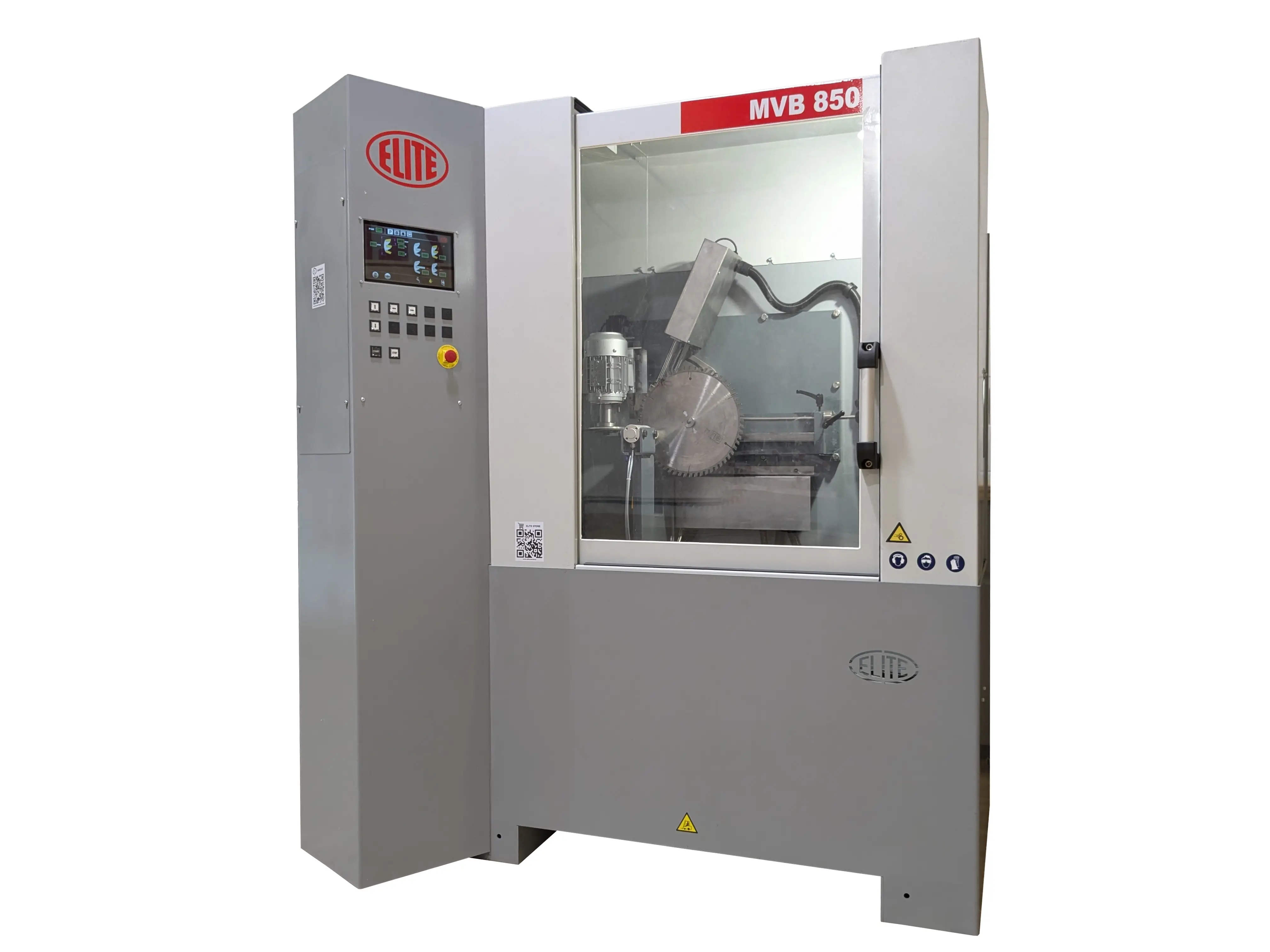

Machine overview


ELITE MVB 850. HOW IT WORKS

Easy to use control panel

Panel%20control

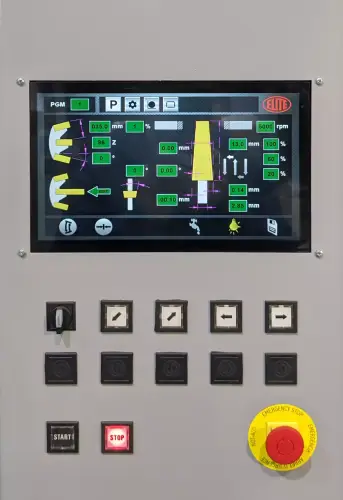

Easy-to-use control panel with LCD color touch screen that allows programming of the machine. Among the programmable values are:

  • Tooth angle programming: The grinding wheel axis will automatically move to the value entered in the program.
  • Sharpening path
  • Sharpening load
  • Sharpening speed
  • Tooth pitch
  • Indexing speed of the tooth feeding pawl
  • Number of teeth
  • Broken teeth

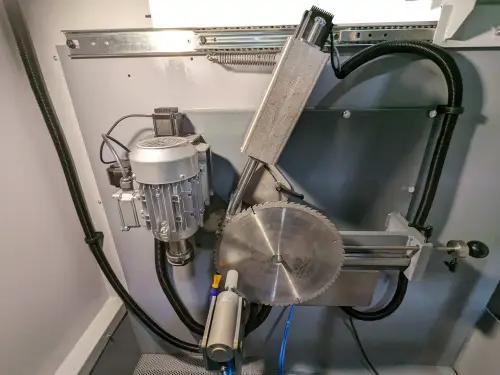

Sharpening group

MVB850%20cuerpo%20afilado

Coolant tank

Big coolant tank with capacity up to 220 liters

GBT%20Coolant%20tank

Back-off grinding

You can go fast when it is needed!
All the movements has been optimized to reduce downtime.

Face Grinding

Fast tooth indexing

Slow tooth indexing

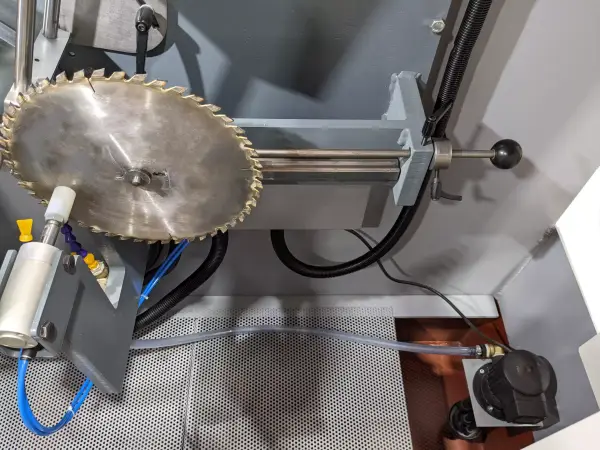

Integrated refrigeration equipment

SVG%20refrigeracion%20%282%29
Machine operates with water-soluble coolant or grinding oil for better sharpening quality and longer grinding wheel life. Integrated coolant system with 220-liter tank and removable grates for easy cleaning.

Easy access and maintenance

Cabina%20back

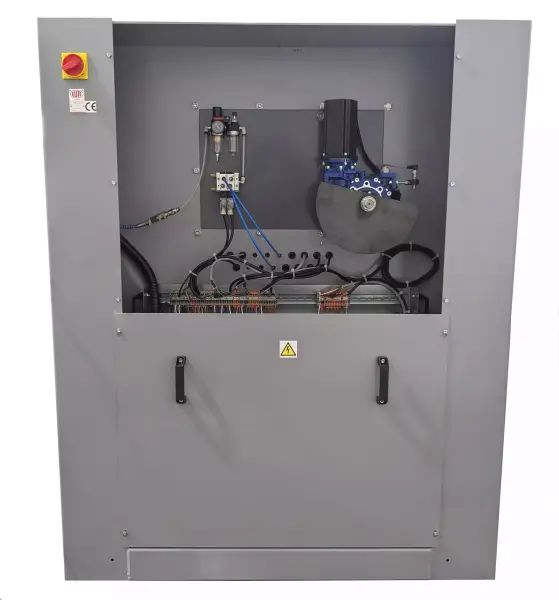

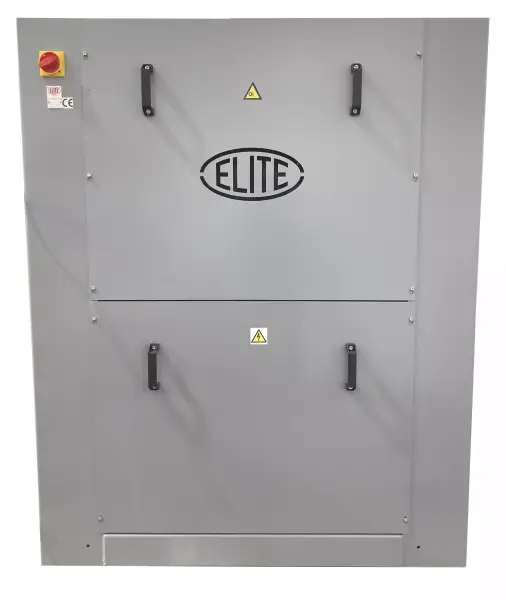

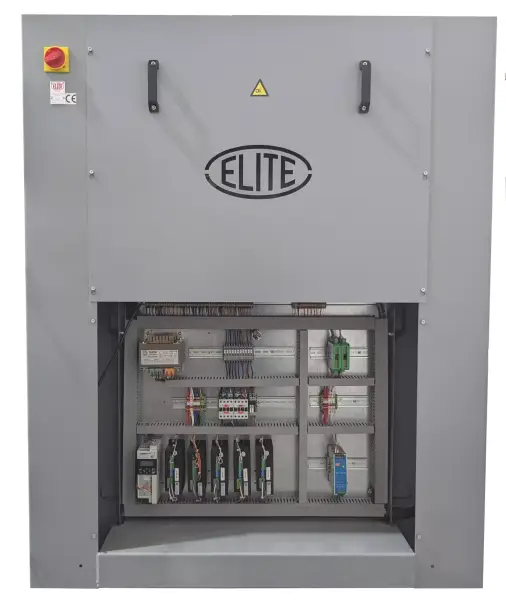

At the back of the machine we find the electrical panel at the bottom and the mechanical system at the top, both protected by their corresponding easy-access panel, which also reduces the total space needed for the machine.
Cabina%20mecanica
Cabina%20cuadro%20electrico


ELITE MVB 850. EQUIPMENT INCLUDED

  • Saw holder for incisors with a diameter of 100 to 210 mm.
  • Saw holder for discs with a diameter of 210 to 850 mm.
  • Centering ring: ø30 mm.
  • Grinding wheel holder for face and back sharpening wheels
  • Small mist extractor
  • 3 mm. feed pawl
  • Lighting of the work area using LED lamp
  • Device for sharpening saws of equal diameters
  • Machine closed by enclosure.
  • Prepared for connection to a machine filtration system or a centralized filtration system.

ELITE MVB 850. SPECIFICATIONS

TECHNICAL DATAMVB 850
Saw blade outside diameterFrom ø100 to ø850 mm. (4" to 33,5")
Saw blade bore diameterFrom ø10 mm.
Blade thicknessUp to 8 mm.
Tooth pitchUp to 125 mm.
BACK OFF GRINDING
Grinding pathUp to 25mm.
Grinding angleFrom 0º to +35º
TOP GRINDING
Tooth shapePlane
Clarance angleFrom +5º to +25º
Bevel angle
Grinding pathUp to 25 mm.
FACE GRINDING
Hook angleFrom -10º to +20º
Grinding pathUp to 25 mm.
OTHER DATA
Grinding wheel motor0,33 kW
Grinding wheel speed2800 RPM
Grinding wheel diameter for back-off grindingø175 mm.
Grinding wheel diameter for top grindingø150 mm.
Grinding wheel diameter for face grindingø175 mm.
4 CNC axisB: Tooth angle - C: feed pawl - X: sharpening load - Z: sharpening path
Machine dimensions1650x 1200 x 1900mm.
Machine weight460 Kg.

TECHNICAL REQUIREMENTS

6 bar air connection required.
Connection voltage: 220/400V 2Ph 50/60Hz
Required connection power: 1.5 kW

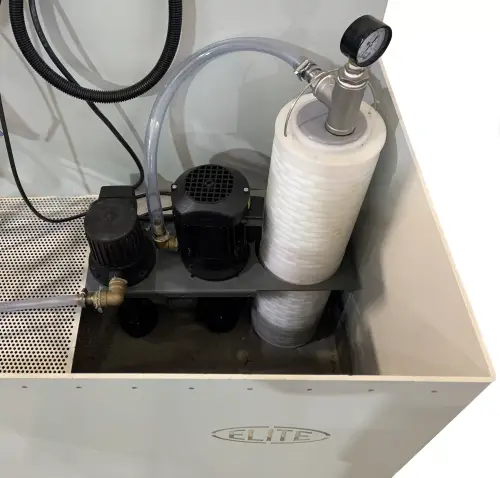

For better sharpening quality, it is recommended to equip the machine with the filtration system ELITE FILTRAmaq UNO. Filtration down to 2 µm.
FILTRAmaq%20UNO


DOWNLOAD LEAFLET


VIEW USER MANUAL
