ELITE mini

Versatile and simple universal cutter grinding machine. Ideal for the maintenance of tools in every company that uses cutting tools

THE SMALLEST UNIVERSAL SHARPENER IN OUR RANGE

A SOLID STRUCTURE THAT ALLOWS A GREAT VARIETY OF ACCESSORIES FOR THE MOST VARIED JOBS

ITS ONLY LIMITATION IS THE SMALL SIZE OF THE TABLE

ELITE%20mini

HIGHLIGHTS

  • Quiet head with no vibration and great solidity
  • Grinding wheels with 125 mm diameter
  • Grinding wheel motor with spindle
  • The X (length), Y (depth) and Z (vertical) axes move on dovetail guides
  • Robust mechanics for a long life of the machine.

ELITE mini. THE CONCEPT.

The ELITE mini is a simple, effective and low maintenance universal tool sharpening machine. The smallest universal sharpener in our range and the best seller.

It allows a multitude of different sharpening jobs depending on the various accessories included with the machine.

Solid and stable structure ensures high precision sharpening of wood cutting tools. With it we can expect precision of hundredths of a millimeter.


ELITE mini. HOW IT WORKS

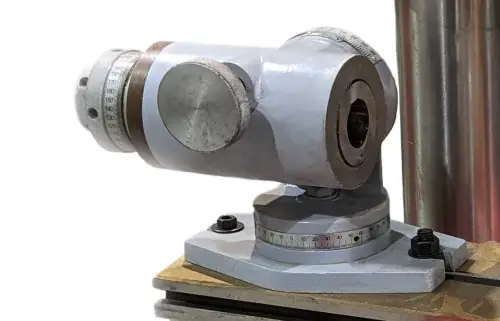

Workhead MT-4
Elite%20mini%20-%20Workhead

Drills grinding device for drills with diameters MT-3, 2, 1 and diameter up to 20 mm.


FEATURES OF THE ELITE mini

  1. Sharpening of cylindrical burs
  2. Sharpening of single angle burs
  3. Sharpening of T-slot cutters
  4. Sharpening of three-cut burs
  5. Sharpening of front milling cutters
  6. Sharpening circular blades
  7. Sharpening of carving tools
  8. Sharpening of taps
  9. Sharpening the tip of twist drills
  10. Sharpening of lathe tools
  11. Sharpening of reamers
  12. Sharpening hobs for gears
  13. Cutter pinion sharpening
  14. Sharpening of burins
  15. Flat grinding

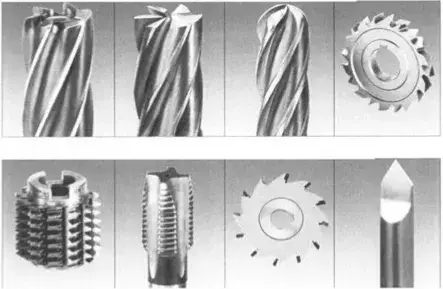

Sharpening of cutting tools

Afilado%20herramientas%20de%20corte

Drill Shapes

Formas%20de%20brocas

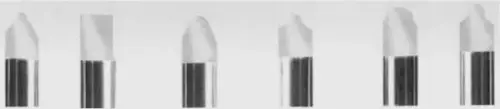

Application Examples

Ejemplos%20de%20aplicacio%CC%81n


OPTIONAL ACCESSORIES

  • Workhead MT-4
  • Set of right and left adjustable tailstocks
  • Motorized workhead for cylindric sharpening works
  • Tooth rest with articulated pawl for helical drills or saw blades
  • Lathe tools and knives holder (MT-4)
  • Cooling equipment, includes: Tank, pump, hoses and water collecting tray
  • MT-4 Selfcentering chuck up to 30 mm diameter
  • Diamond dressing unit
  • MT-4 collet holder with a set of 6 collets from 6 to 20 mm diameter

GRINDING A CIRCULAR KNIFE


ELITE mini. SPECIFICATIONS

TECHNICAL DATAELITE mini
Grinding wheel motor power0.33 CV
Grinding wheel rotating speed2900 RPM
Grinding wheel diameterUp to ø125 mm.
Working table dimensions470 x 133 mm
Longitudinal worktable travel320 mm.
Transversal worktable travel140 mm.
Vertical travel190 mm.
Vertical rotation grinding wheel spindleFrom +40º to -40º
Spindle horizontal rotation180º
Horizontal rotation grinding wheel spindleFrom +50º to -50º
AVAILABLE VERSIONS
ModelPacking sizeGross weight
ELITE mini1100 x 750 x 950 mm.265 Kg.

DOWNLOAD LEAFLET

ELITE mini-ES_EN.pdf


VIEW USER MANUAL


MACHINES COMPARISONS AT A GLANCE

MODELAutomationMotor powerTable sizeMax. tool weightIdeal for
ELITE CNC5 CNC axis1,5 kWNo50 Kg.Metal tools
ELITE 92 CNCUp to 4 CNC axis1,5 kWNo50 Kg.Wood tools
ELITE 70Manual1,5 kWNo200 Kg.Metal tools
ELITE 92Manual1,5 kW870 x 160 mm.100 Kg.Wood tools
ELITE miniManual0,25 kW470 x 133 mm.20 Kg.Wood tools
