ECONOMICAL ROLLER BAND SAW TENSIONING MACHINE
EQUIPPED WITH 0.75 kW (1 HP) MOTOR FOR PRECISE BAND SAW FEED
HIGHLIGHTS
- Low maintenance
- Precise band saw feed thanks to its 0.75 kW (1 HP) motor
- Band saw feed speed up to 7 m/min
- The optional equipment of the workbench ensures the proper setting and tensioning of the saw body
- Its excellent quality/price ratio makes it an essential piece of equipment for all types of sawmills
ELITE LM PRO. THE CONCEPT.
The ELITE LM PRO is specially designed for tensioning and hardening of band saws, thus freeing the saws from deflections and deformations.

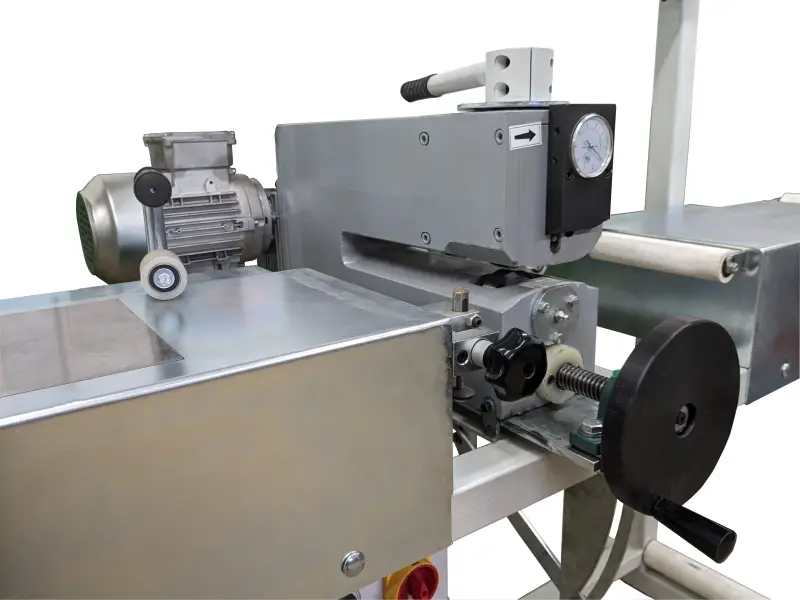

It is equipped with a 0.75 kW (1 HP) motor to ensure precise feed of the band saw. It can also be equipped with the workbench as an optional configuration.
Why is tensioning necessary? Tensioning allows:
- Adjust the saw to the guides.
- Ensure the durability of the saw body
- Maintain all the faces of the teeth.
- Prevent reflections from the saw while cutting.
- Ensure a precise cut.
ELITE LM PRO. HOW IT WORKS
Working principle
Roll saw tensioning machine without working table

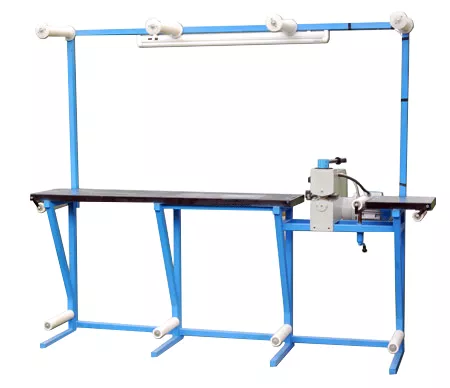

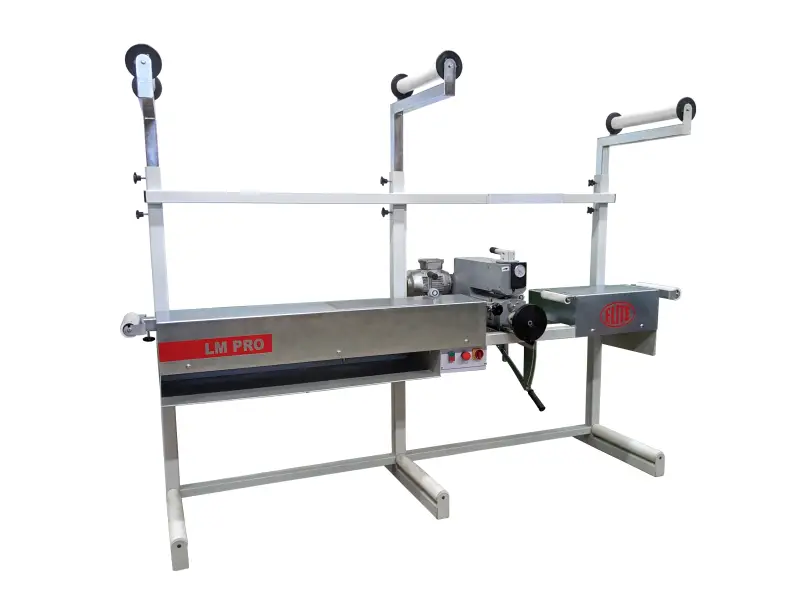

Working table available as an option
Our machines include the variable frequency drive as a standard feature, so you can adjust grinding wheel speed at the optimal value and also reduces energy consumption.
ELITE LM PRO. SPECIFICATIONS
| TECHNICAL DATA | ELITE LM PRO |
|---|---|
| Band saw width | Up to 250 mm. (up to 9.8") |
| Speed feeding up of the band saw | Up to 7 m/min |
| AVAILABLE VERSIONS | ||
|---|---|---|
| Model | Packing size | Packing weight |
| LM PRO without workbench | 400 x 510 x 400 mm. | 90 Kg. |
| LM PRO with workbench | 2000 x 3150 x 600 mm. | 125 Kg. |
DOWNLOAD LEAFLET
MACHINES COMPARISONS AT A GLANCE
| MODEL | TOP GRINDING | TOOTH WELDING | SIDES GRINDING | SETTER | OTHER |
|---|---|---|---|---|---|
| SC 10 | 20 to 300 mm. bandsaws | - | - | - | - |
| SC PRO | 10 to 10 mm. bandsaws | - | - | - | - |
| EVG 350 | 40 to 350 mm. bandsaws | - | - | - | - |
| EVG 250 | 20 to 250 mm. bandsaws | - | - | - | - |
| SSC 350 | - | - | 40 to 350 mm. bandsaws | - | - |
| MMV 350 | - | 40 to 350 mm. bandsaws | - | - | - |
| SC 2 | 10 to 70 mm. triangular shape bandsaws | - | - | Optional: TR2 / TR3 mounted on SC 2 | - |
| SC 3 | 10 to 60 mm. triangular or curved shape bandsaws | - | - | No | Different cams for other tooth shapes are possible |
| LM PRO | - | - | - | - | Leveling + tensioning |
| CH PRO | - | - | - | - | Swaging |
| TR 5 | - | - | - | 20 to 120 mm. | - |
| TR 3 | - | - | - | 10 to 80 mm. | - |
| TR 2 | - | - | - | 10 to 45 mm. | - |
