ELITE 92 CNC

Automatic CNC universal sharpening machine up to 4 automated axis for the grinding tasks for woodworking cutting tools such as milling cutters, reamers, profiled blades, spinning top heads and others

UNIVERSAL TOOLS SHARPENING MACHINE WITH UP TO 4 CNC AXIS

UNBEATABLE QUALITY/PRICE FOR AN AUTOMATIC CNC MACHINE

EXTREMELY EASY TO OPERATE

ELITE%2092%20CNC

HIGHLIGHTS

  • Grinding with different diameter grinding wheels with speed variation from 3,000 to 9,000 RPM and 1.5 HP grinding wheel motor (Optional up to 18.000 RPM).
  • Direct drive electro-spindle with frequency variator as a standard
  • The X (table translation), Y (depth) axis move on dovetail guides, Z (vertical) moves on recirculating ballbearing guides.
  • Centralized lubrification system with manual operation.
  • Very easy to use and accessible control
  • Very robust mechanics for a long life of the machine.

ELITE 92 CNC. MACHINE BASIS.

The ELITE 92 our most popular universal tools sharpening machine now automated with up to 4 CNC axis (X, Y, Z, A) specifically designed for the sharpening tools in the woodworking business.

Its working table allows a maximum load of 100 kg, for the most common sharpening or grinding of cutting tools.

The X (traverse) and Y (depth) axis are moved by dovetail steel guides and the Z (vertical) axis movement of the table runs on linear recirculating ball bearings. All the automated axis are actioned by ballbearing screws.

Its general operation is very simple and convenient.

Presentation


ELITE 92 CNC. HOW IT WORKS

  • Half enclosure with control panel available as optional equipment.
    ELITE%2092%20CNC

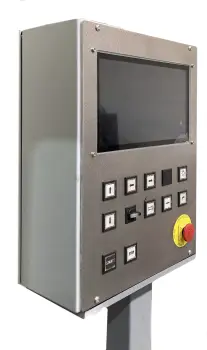

  • Control panel easy to operate
    Panel%20control%2092%20CNC
  • Manual centralized lubrification system
    ELITE%2092%20CNC%20Engrasador
  • The grinding wheel head can be rotated 360º with respect to its vertical axis and 90º with respect to the horizontal axis.
    ELITE%2092%20Shade%20Pic
    Grinding wheel direct drive motor with variable speed drive from 3.000 to 9.000 RPM (Optional up to 18.000 RPM).

Filtration system


OPTIONAL ACCESSORIES

CNC control panel up to 4 non interpolated axis (X, Y, Z, A). Management easy and guided with LCD screen

Table rotable 360º in the horizontal plane

Half enclosure

Full enclosure


ELITE 92 CNC. SPECIFICATIONS

TECHNICAL DATAELITE 92 CNC
Grinding wheel motor powerFrom 3000 to 9000 RPM and 1.5 HP (Optional up to 18000 RPM)
Grinding wheel diameterUp to ø150 mm.
Working table dimensions730 x 210 mm.
X- axis useful travel410 mm.
Y- axis useful travel170 mm.
Z- axis useful travel250 mm.
Vertical spindle rotation360º
Horizontal spindle rotation0º to +90º
Maximum weight on the table100 kg.
AVAILABLE VERSIONS
ModelPacking SizeWeight
Without enclosure1500 x 870 x 1400 mm.650 Kg.
Half enclosure1600 x 1150 x 1500 mm.700 Kg.
Full enclosure1600 x 1150 x 2100 mm.740 Kg.

DOWNLOAD LEAFLET

Elite 92 CNC - EN.pdf


VIEW USER MANUAL


MACHINES COMPARISONS AT A GLANCE

MODELAutomationMotor powerTable sizeMax. tool weightIdeal for
ELITE CNC5 CNC axis1,5 kWNo50 Kg.Metal tools
ELITE 92 CNCUp to 4 CNC axis1,5 kWNo50 Kg.Wood tools
ELITE 70Manual1,5 kWNo200 Kg.Metal tools
ELITE 92Manual1,5 kW870 x 160 mm.100 Kg.Wood tools
ELITE miniManual0,25 kW470 x 133 mm.20 Kg.Wood tools
