AUTOMATIC BAND SAW SHARPENING MACHINE FOR ALL TOOTH SHAPES.
FOR SHARPENING STEEL, BIMETAL OR CARBIDE TIPPED SAWS.
ENABLES AUTOMATIC GRINDING OF BAND SAW BLADES WITH A WIDTH OF 5 TO 100 MM (0,2" TO 3,9") BY MEANS OF ITS 3-AXIS CNC SYSTEM.
HIGHLIGHTS
Programmable control panel with LCD display for easy and intuitive use at the press of a button
- Very robust mechanics for a long machine life
- Cabin door made of stainless steel to prevent rust
- Centralized lubrication system
- Wheels and arms to hold long bandsaws
- Silent, vibration-free head
- It allows the sharpening of band saw blades with profiles for both metal and wood, bimetal and carbide band saws

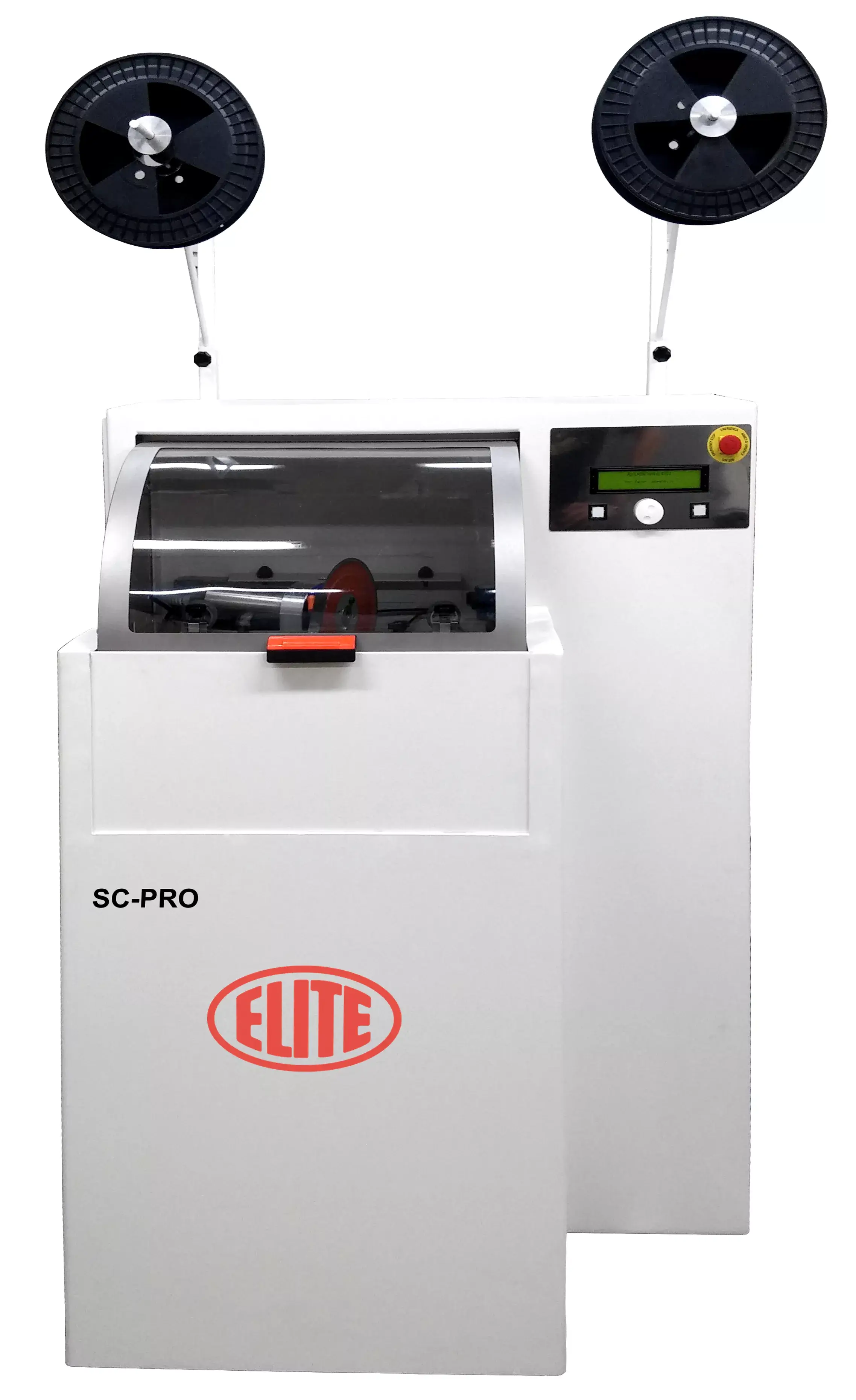

ELITE SC PRO. MACHINE BASIS.
The ELITE SC PRO model is our most advanced bandsaw sharpening machine that allows sharpening of almost all types of band saws up to 100 mm wide, including bimetal and carbide tipped band saws.
Thanks to its programmable panel, it is very easy to make bimetal saws with variable pitch or even program your own tooth profile in steel saws in a few simple steps. The programming of the grinding cycle is very simple, due to the intuitive system in which several parameters can be configured by means of a single button.
In addition, the design of the machine, completely enclosed, allows to work without noise or splatter produced by the refrigeration.
ELITE SC PRO. HOW IT WORKS
Cabin in stainless steel
Cabin in stainless steel to avoid the corrosion produced when sharpening with cooling.
Easy placement of the band saw.
The simple opening system does not take up space on the cabin, which makes it possible to assemble band saws with very little development and also by a very simple positioning due to the easy access.
Control panel integrated in the cabin
You can create and edit programs with the top view of the teeth to be sharpened, for easier adjustment.
Programmable CNC panel
With the programmable CNC panel we can perform programs and store them in memory for later use. It can be sharpened the following tooth profile: straight, straight spaced, curve, curve spaced, bimetalic and carbide tipped teeth.
VIDEOS
Bimetal Teeth
ELITE SC PRO. SPECIFICATIONS
| TECHNICAL DATA | ELITE SC PRO |
|---|---|
| Band saw width | From 5 to 100 mm. (0.19" to 3.9") |
| Band saw thickness | Up to 3 mm. (0.12") |
| Tooth pitch | From 3 to 50 mm (0.12" to 1.96") |
| Tooth profile | Triangular, curved, bimetallic or carbide tipped teeth |
| Grinding wheel speed | By speed variator, adjustable from 3.000 to 8000 rpm |
| Grinding wheel motor | 2.2 kW |
| Lubrication system | Centralized |
| LCD screen | For automatic work cycle programming |
| AVAILABLE VERSIONS | ||
|---|---|---|
| Model | Size | Weight |
| SC PRO | 1200 x 1000 x 1700 mm. | 470 Kg. |
DOWNLOAD LEAFLET
MACHINES COMPARISONS AT A GLANCE
| MODEL | TOP GRINDING | TOOTH WELDING | SIDES GRINDING | SETTER | OTHER |
|---|---|---|---|---|---|
| SC 10 | 20 to 300 mm. bandsaws | - | - | - | - |
| SC PRO | 10 to 10 mm. bandsaws | - | - | - | - |
| EVG 350 | 40 to 350 mm. bandsaws | - | - | - | - |
| EVG 250 | 20 to 250 mm. bandsaws | - | - | - | - |
| SSC 350 | - | - | 40 to 350 mm. bandsaws | - | - |
| MMV 350 | - | 40 to 350 mm. bandsaws | - | - | - |
| SC 2 | 10 to 70 mm. triangular shape bandsaws | - | - | Optional: TR2 / TR3 mounted on SC 2 | - |
| SC 3 | 10 to 60 mm. triangular or curved shape bandsaws | - | - | No | Different cams for other tooth shapes are possible |
| LM PRO | - | - | - | - | Leveling + tensioning |
| CH PRO | - | - | - | - | Swaging |
| TR 5 | - | - | - | 20 to 120 mm. | - |
| TR 3 | - | - | - | 10 to 80 mm. | - |
| TR 2 | - | - | - | 10 to 45 mm. | - |
