THE MOST WIDELY USED WOOD BAND SAW WELDING MACHINE FROM 10 UP TO 40 MM (0.39" TO 1.57")
FOR WELDING BAND SAWS IN BIMETAL MATERIALS, STAINLESS STEEL AND STEEL.
WIDTH FOR BIMETAL AND STAINLESS SAWS: 10 TO 27 MM (0.39" TO 1")
WDTH FOR STEEL SAWS: 10 TO 40 MM (0.39" TO 1-1/2")
HIGHLIGHTS
- Welding of the stainless steel and bimetal band saw, without additional flux and in a few seconds
- It incorporates its own annealing system, which together with the flux free welding guarantees that the tape has the same hardness in any part of its development.
ELITE SOLDAmaq PRO 40. THE CONCEPT.
The ELITE SOLDAmaq PRO 40 is our welding machine suitable for welding steel, bimetal and stainless steel saws.
"Pulse and ready" band saw welding: Simply follow the welding parameters we provide depending on the thickness and width of the saw, close the saw clamping jaws and press the welding button.
It allows both welding and annealing of the weld in one clamping and without adding any additional material or flux.
ELITE SOLDAmaq PRO 40. HOW IT WORKS
Working process
Version with electronic control panel
Optional equipment

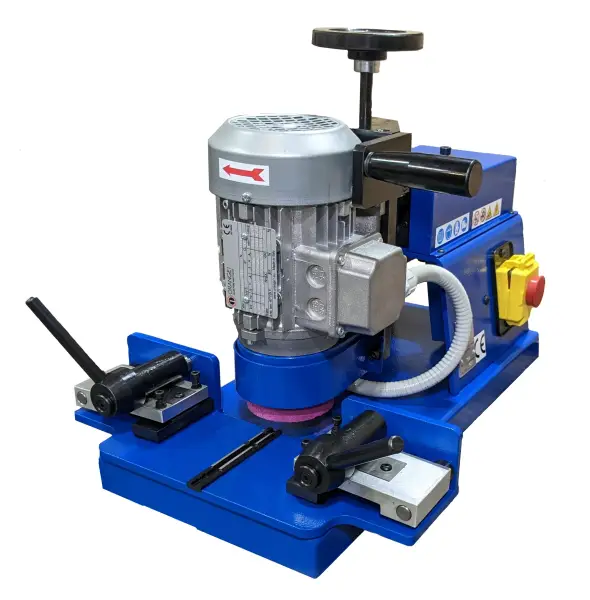

Can be optionally equipped with SOLDAmaq EC deburring machine, for removal of the weld seam

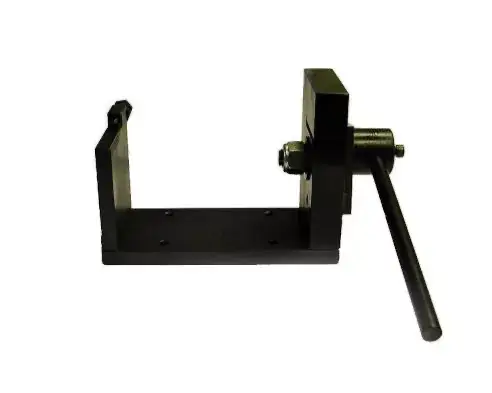

Shears
SOLDAmaq PRO 40. OPTIONAL ACCESSORIES
Cooling system for clamping jaws, for continuous welding and production lines
SOLDAmaq PRO 40. SPECIFICATIONS
| TECHNICAL DATA | SOLDAmaq PRO 40 |
|---|---|
| Steel bandsaw width | From 10 to 40 mm (0.39" to 1-1/2") |
| Bimetal bandsaw width | From 10 to 27 mm (0.39" to 1") |
| Bandsaw thickness | From 0.5 to 1.2 mm. (0.02" to 0.063") |
| Steel band saws cross section | 36 mm2 |
| Bimetal band saws cross section | 24 mm2 |
| Installed power | 6.5 kW |
| AVAILABLE VERSIONS | ||
|---|---|---|
| Model | Packing Size | Gross weight |
| SOLDAmaq PRO 40 | 710 x 710 x 360 mm. | 103 Kg. |
DOWNLOAD LEAFLET
VIEW USER MANUAL
MACHINES COMPARISONS AT A GLANCE
| MODEL | WELDING TECH | STEEL | INOX - BIMETAL | CIRCULAR SAWS | OTHERS |
|---|---|---|---|---|---|
| SOLDAmaq 30 mini | Butt welding | 5 - 30 mm. | No | No | - |
| SOLDAmaq 40 mini | Butt welding | 10 - 40 mm. | No | No | - |
| SOLDAmaq 60 mini | Butt welding | 20 - 60 mm. | No | No | - |
| SOLDAmaq 40 | Butt welding | 10 - 40 mm. | Ocasional: 5 - 27 mm. | No | - |
| SOLDAmaq 60 | Butt welding | 20 - 60 mm. | Ocasional: 10 - 34 mm. | No | - |
| SOLDAmaq 80 | Butt welding | 20 - 80 mm. | Ocasional: 10 - 34 mm. | No | - |
| SOLDAmaq PRO 40 | Flash welding | 5 - 40 mm. | 10 - 27 mm. | No | - |
| SOLDAmaq PRO 65 | Flash welding | 10 - 65 mm. | 10 - 41 mm. | No | - |
| SOLDAmaq 320 | TIG | 60 - 320 mm. | No | No | - |
| SOLDAmaq 1200 | Resistance | - | - | 150 to 1200 mm. | For repairing |
| SOLDAmaq HF | High Frequency | 100 - 850 mm. | For high production | ||
| SOLDAmaq EC | - | - | - | - | For deburing of welding strip |
